Electrospinning Device Catalogue


Laboratory Setup
Basic Setup
Spinbox Systems

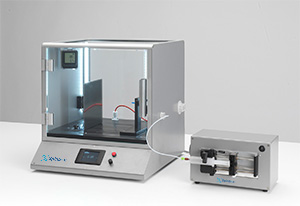

Spinbox Electrospinning Basic Kit for Beginners

This kit includes a positive high voltage power supply (up to 30kV), stainless-steel flat plate collector, Syringe Feeding System, Taylor Cone imaging system, T/RH precision sensor, single-phase spinning head

View details >>

Sales Office: Europe, USA, Canada, Japan, China, India, Pakistan, South-Asia, Mexico, Brazil, Chile, Colombia

Spinbox Systems

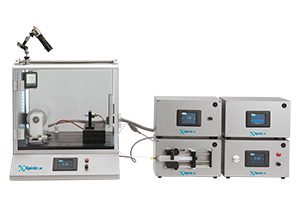

Spinbox Electrospinning Advanced Kit for Professional users

This kit includes a positive high voltage power supply (up to 30kV), negative high votlage (down to -10 kV), Syringe Feeding System x 2, Drum collector, Taylor Cone imaging system, single-phase spinning head and more

View details >>

Sales Office: Europe, USA, Canada, Japan, China, India, Pakistan, South-Asia, Mexico, Brazil, Chile, Colombia

Inovenso
Nanospinner 24

Inovenso's best-selling model with more than 50 units installed in renowned universities and companies around the globe. Compatible for a wide range of applications area: Bio-medical, Filtration, Cosmetics and more.

View details >>

Sales Office: Turkey, United States

Spraybase®
Spraybase® 20kV Electrospinning Starter Kit
This Kit includes;

FEATURES

View details >>

Sales Office: Europe (Ireland), United States

Spraybase®
Spraybase® 20kV Electrospinning and Electrospraying Kit

This combination kit is ideal for electrospining and electrospraying with 2 sources for delivering your chosen fluid. The fluid delivery is ideal for low viscous solutions providing you with an ideal constant flow which enhance reproducibility and collection of mono-dispersed particles.

View details >>

Sales Office: Europe (Ireland), United States

Contipro
4SPIN LAB

The Contipro 4SPIN LAB is a desktop electrospinning device used in the nanofiber production and the preparation of nanofiber layers from solutions of biopolymers and synthetic polymers.

View details >>

See Product Catalogue

Sales Office: Czech Republic, France, Japan, South Korea, Taiwan, Singapore, India, USA

Linari Engineering
Starter Kit 40KV

Starter Kit with a 40kV HV generator to start the electrospinning of nanofibers in one hour.

View details >>

Sales Office: Italy

Linari Engineering
Starter Kit 60KV

Starter Kit with 60KV HV generator for high volume production of nanofibers.

View details >>

Sales Office: Italy


Large scale Electrospinning Setup
Bioinicia

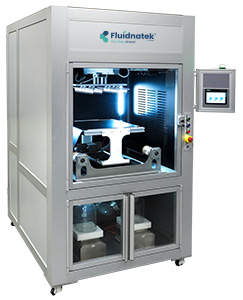

Fluidnatek® LE-500

The Fluidnatek LE-500 is a pilot-production plant intended for semi-continuous production on a roll-to-roll collector. Ideal for manufacturing of pre-series.

View details >>

Sales Office: Europe, USA, Canada, Japan, China, India, Pakistan, South-Asia, Mexico, Brazil, Chile, Colombia.

Inovenso
NS Pilot Line

Nanospinner Pilot Line Semi Industrial Electrospinning Machine is designed for precise product development processes in semi industrial scales.

View details >>

Sales Office: Turkey, United States

Linari Engineering
RT Advanced-ETC

The best solution for productions of ultra-high quality nanofibers.

View details >>

Sales Office: Italy


Melt Electrospinning Setup
Spraybase®
Melt Electrospinning

SPRAYBASE® NEW MELT ELECTROSPINNING INSTRUMENT WILL ENABLE THE PRODUCTION OF 3D SCAFFOLDS FOR YOUR TISSUE ENGINEERING NEEDS

View details >>

Sales Office: Europe (Ireland), United States


Controlled Environment Electrospinning Setup
Bioinicia

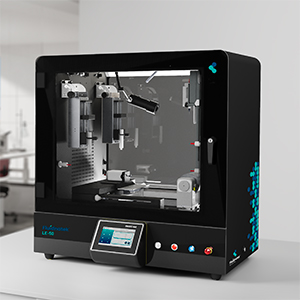

Fluidnatek® LE-50

The Fluidnatek LE-50 is an advanced benchtop lab machine for electrospinning/electrospraying intended for R&D. Climate control system for regulation of temperature and relative humidity.

View details >>

Sales Office: Europe, USA, Canada, Japan, China, India, Pakistan, South-Asia, Mexico, Brazil, Chile, Colombia.

Bioinicia

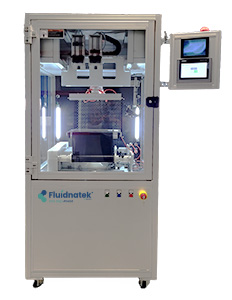

Fluidnatek® LE-100

The Fluidnatek LE-100 is a premium electrospinning/electrospraying machine for labs and biomedical companies:

View details >>

Sales Office: Europe, USA, Canada, Japan, China, India, Pakistan, South-Asia, Mexico, Brazil, Chile, Colombia.

Spraybase®
Climatic controlled cabinet

The Spraybase® Climatic Controlled cabinet is a chamber where a chosen temperature and relative humidity can be set and maintained. This is achieved through the use of a heater, cooler, humidifier and dehumidifier which are integrated into the enclosure and controller.

View details >>

Sales Office: Europe (Ireland), United States


Others
Spraybase®
Co-Axial Kit

This kit enables users to deliver two different solutions independently and simultaneously to the co-axial emitter to create the core- sheath fiber or particle required. It includes a combination of Spraybase software controlled syringe pumps and/or Spraybase pressure over fluid system to deliver the various solutions along with a high voltage power supply with a single voltage output up to 20 kV (positive).

View details >>

Sales Office: Europe (Ireland), United States

Spraybase®
Tri-Axial Kit

This kit enables users to deliver three different solutions independently and simultaneously to the tri-axial emitter to create the core- sheath fiber or particle required. It includes a combination of Spraybase software controlled syringe pumps and Spraybase pressure over fluid system to deliver the various solutions along with a high voltage power supply with a single voltage output up to 20 kV (positive).

View details >>

Sales Office: Europe (Ireland), United States


Collector
Drum Collector
Spinbox Systems
Drum collector

Universal rotating collector platform along with the cylindrical anodized aluminium collector. When combined with the Y-Axis automated scanning emitter motion, this also allows for the fabrication of uniform coatings or sheets of electrospun fiber (up to 100 mm x 310 mm).

View details >>

Sales Office: Europe, USA, Canada, Japan, China, India, Pakistan, South-Asia, Mexico, Brazil, Chile, Colombia

Spinbox Systems
Disc collector

Universal rotating collector platform along with the sharp-edged anodized aluminium disc collector for mounting in to the universal rotating collector platform. For collection of aligned fiber bundles. Maximum diameter: 100 mm.

View details >>

Sales Office: Europe, USA, Canada, Japan, China, India, Pakistan, South-Asia, Mexico, Brazil, Chile, Colombia

Spinbox Systems
Mandrel collector

Universal rotating collector platform along with the the stainless-steel rod collector for mounting into the universal rotating collector platform.
Allows for the fabrication of nanofiber-walled tubular structures.
Mandrel dimensions: 5 mm diameter x 200 mm length.

View details >>

Sales Office: Europe, USA, Canada, Japan, China, India, Pakistan, South-Asia, Mexico, Brazil, Chile, Colombia

Spraybase®
Rotating Drum

If aligned fibers is what you particular area of research requires then Spraybase® rotating drum collector is ideal. The rotating drum collector is precision engineered and is dynamically balanced to G6.3 standard.

View details >>

Sales Office: Europe (Ireland), United States

Spraybase®
Rotating mandrel collector: Cat000039

INTRODUCING A NEW TRANSLATIONAL STAGE! This includes a set of mandrel collectors, controller and stage. The rotating mandrel collector set is interchangeable with our standard flat plate collector and other collectors. Includes 4 mandrels, 1 each of 3, 4, 5 and 6 mm.

View details >>

Sales Office: Europe (Ireland), United States

Spraybase®
Spraybase® Parallel Plates

The Spraybase® platform can be modified to enable electrospraying or electrospinning on to Parallel Plates for aligned fiber collection. Consists of two 2 mm thick aluminium plates with adjustable separation. Made of Aluminum and interchangeable.

View details >>

Sales Office: Europe (Ireland), United States

Linari Engineering
RT Collector

High speed roto - translating collector. Fully digital control of motion and HV generators

View details >>

Sales Office: Italy

Linari Engineering
Easy drum

Rotating collector module for your electrospinning system.

View details >>

Sales Office: Italy

Linari Engineering
SSCY_30X120

Aluminum cylinder D=30 mm, Length=120 mm

View details >>

Sales Office: Italy

Linari Engineering
SSCY_100x350

Aluminium cylinder D=100, Length=350 mm

View details >>

Sales Office: Italy



Plate
Spinbox Systems
Flat plate collector

Stainless steel flat plate collector of 200mm x 200mm of deposition area

View details >>

Sales Office: Europe, USA, Canada, Japan, China, India, Pakistan, South-Asia, Mexico, Brazil, Chile, Colombia

Spraybase®
Stainless Circular Electrospin Target/Collector

Purpose designed 90mm circular stainless steel collector with lids for electrospraying or spinning. Collect fibres or particles. Autoclave, reusable and durable for everyday use.

View details >>

Sales Office: Europe (Ireland), United States

Linari Engineering
ALDIS_100x3

Aluminium disk D100x3 mm

View details >>

Sales Office: Italy

Linari Engineering
PVC200_300

PVC 200X300mm Thickness=15mm 25X25 M6

View details >>

Sales Office: Italy


Nozzle
Coaxial
Spinbox Systems
Coaxial multi-emitter

Multi-emitter spinning head consists of 5 parallel emitters for both single-phase and coaxial electrospinning. Accomodate needles from 0.15 mm to 1.7 mm OD.
Inner needle: 0.9 mm OD x 0.6 mm ID (x3)
Outer needle: 1.7 mm OD x 1.4 mm ID (x3)

View details >>

Sales Office: Europe, USA, Canada, Japan, China, India, Pakistan, South-Asia, Mexico, Brazil, Chile, Colombia

ramé-hart instrument
Coaxial Nozzle

ramé-hart fabricates a variety of custom coaxial and triaxial needles for a wide spectrum of special applications. Coaxial and triaxial needles (sometimes called spinnerets) are used for electrospinning and electrospraying applications. The needles have excellent electrical conductivity.

View details >>

Sales Office: United States

Spraybase®
Coaxial Nozzle

Spraybase® offers custom coaxial needles and Quick Start Co-Axial Electrospinning Needle for electrospinning and electrospraying applications. The needles have excellent electrical conductivity.

View details >>

Sales Office: Europe (Ireland), United States

Linari Engineering
Coax_ 2Disp

Sealed coaxial needles, 2 layers G21-15 Fluid inlet connections ½" 28 UNF

View details >>

Sales Office: Italy

Linari Engineering
Coax_2lkit

Modular coaxial needles, 2 layers with interchangeable tips to make the cleaning easy

View details >>

Sales Office: Italy


Triaxial
Spinbox Systems
Triaxial spinning head

Triaxial single emitter is used for spinning or spraying 3-layer fibres or particles.

View details >>

Sales Office: Europe, USA, Canada, Japan, China, India, Pakistan, South-Asia, Mexico, Brazil, Chile, Colombia

ramé-hart instrument
Triaxial Nozzle

ramé-hart fabricates a variety of custom coaxial and triaxial needles for a wide spectrum of special applications. Coaxial and triaxial needles (sometimes called spinnerets) are used for electrospinning and electrospraying applications. The needles have excellent electrical conductivity.

View details >>

Sales Office: United States

Spraybase®
Tri Axial Electrospinning Nozzle

Spraybase® offers custom Tri-axial needles for electrospinning and electrospraying applications. The needles have excellent electrical conductivity.

View details >>

Sales Office: Europe (Ireland), United States

Linari Engineering
Coax_ 3Disp

Sealed coaxial needles, 3 layers G21-15-11 Fluid inlet connections ¼" 28 UNF

View details >>

Sales Office: Italy

Linari Engineering
COAX_3LKIT

Modular coaxial needles, 3 layers with interchangeable tips to make the cleaning easy

View details >>

Sales Office: Italy


Tetraaxial
Spraybase®
Tetraxial (Emitters)

Spraybase® offers custom needles for electrospinning and electrospraying applications. The needles have excellent electrical conductivity. Shafting is precision Type 304 Stainless Steel while the Luer connector is nickel and chrome-plated brass.

View details >>

Sales Office: Europe (Ireland), United States


Uniaxial
Linari Engineering
NEL_0815_12PC

Luer Needle - OD=0.8mm L=15 mm flat tip - 12 pcs

View details >>

Sales Office: Italy

Linari Engineering
NEL_0815_B90_6pc

Special Luer Needle - OD=0.8mm L=15mm, bent-90deg, flat tip - 6 pcs

View details >>

Sales Office: Italy

Linari Engineering
NEL_0815_B90_F_6pc

Special Luer Needle - OD=0.8mm L=15mm, bent-90deg + vertical rod, flat tip- 6 pcs

View details >>

Sales Office: Italy


Multi-nozzles
Spinbox Systems
Single-phase multi-emitter

Multi-emitter spinning head consisting of 5 parallel emitters with the same solution feed. For use with any size of Luer lock needle. Needles supplied are 22GA-1/2? (disposable stainless steel with PP hub) by default (10x).

View details >>

Sales Office: Europe, USA, Canada, Japan, China, India, Pakistan, South-Asia, Mexico, Brazil, Chile, Colombia

Linari Engineering
MN14_08

Multiple needles - 14 tips x OD 0.8mm

View details >>

Sales Office: Italy


Other Accessories
Syringe
Linari Engineering
SOC10_3pcs

Glass Syringe 10 ml Luer Lock M ends - 3pcs

View details >>

Sales Office: Italy

Linari Engineering
SOC50

Glass Syringe Luer Lock M ends 50 ml

View details >>

Sales Office: Italy


Adaptor
Linari Engineering
LUERUNF

Luer Female to Unf thread. Luer F for coaxial needles ( 1 pc ) with UNF thread to fit coaxial needles fluid inlet

View details >>

Sales Office: Italy


Tubes
Linari Engineering
LLM-LLF-02

PVC tubing L= 20 cm with Luer Lock M/F ends
OD/ID = 4.1/3.0 mm

View details >>

Sales Office: Italy

Linari Engineering
LLM-LLF-05

PVC tubing L= 50 cm with Luer Lock M/F ends
OD/ID = 4.1/3.0 mm

View details >>

Sales Office: Italy

Linari Engineering
LLM-LLF-10

PVC tubing L= 100 cm with Luer Lock M/F ends
OD/ID = 4.1/3.0 mm

View details >>

Sales Office: Italy


Value Packs
Spraybase®
Electrospinning Expansion Pack

6 Emitters (1 of each size, 16, 18, 20, 22, 24, and 26 Gauge)
2 Tubings (1x Tube E-0.8mm and 1x tube F-1.0mm ).

View details >>

Sales Office: Europe (Ireland), United States

Spraybase®
Electrospraying Expansion Pack

4 Emitters (1 of each size 24, 26, 28 and 30 Gauge)
3 Tubings (1x Tube A- 0.127um, 1x Tube B- 0.3mm and 1x Tube C- 0.5mm)

View details >>

Sales Office: Europe (Ireland), United States

Spraybase®
Co-Axial Expansion Pack

Quick Start Co-axial Emitter with standard 20 G outside and 26 G inside.
The inside and outside needles are the same length at 10mm from the hub.
Choice of 2 x Tubing including Luer Locks.

View details >>

Sales Office: Europe (Ireland), United States


Self-Assemble Components
High Voltage Power Supply
Spinbox Systems
Positive high-voltage source

Positive high-voltage source (potentiometer-adjustable from 0 up to 30 kV) - 133 µA. Digital display for voltage monitoring (resolution: 0.1 kV).

View details >>

Sales Office: Europe, USA, Canada, Japan, China, India, Pakistan, South-Asia, Mexico, Brazil, Chile, Colombia

Spinbox Systems
Negative high-voltage source

Negative high-voltage source (potentiometer-adjustable from 0 down to -10 kV) -133 µA. Digital display for voltage monitoring (resolution: 0.1 kV).

View details >>

Sales Office: Europe, USA, Canada, Japan, China, India, Pakistan, South-Asia, Mexico, Brazil, Chile, Colombia

Linari Engineering
HV generator mini 40kV

Mini high voltage generator 40kV@15W - Analog control

View details >>

Sales Office: Italy

Linari Engineering
HV generator 60kV

High voltage generator 60kV@120W Positive or Negative polarity- LCD with web interface

View details >>

Sales Office: Italy

Linari Engineering
HV generator 60kV Analog

High Voltage generator 60kV@120W Positive or Negative polarity

View details >>

Sales Office: Italy

Spraybase®
20kV High Voltage Power Supply Controller

20kV Power Supply Unit, CE Mark, Multi-turn Control for accurate voltage setting, Large Clear Display Screen.

View details >>

Sales Office: Europe (Ireland), United States

Spraybase®
30kV High Voltage Power Supply Controller

30kV Power Supply Unit, CE Mark, Multi-turn Control for accurate voltage setting, Large Clear Display Screen.

View details >>

Sales Office: Europe (Ireland), United States


Syringe Pump
Spinbox Systems
Scanning emitter motion

Y-Axis linear automated motion of the spinning head to create wider, homogeneous samples. In combination with the rotating drum collector enables fabrication of homogenous nano/micro-fibrous sheets or coatings up to 100 mm x 310 mm.

View details >>

Sales Office: Europe, USA, Canada, Japan, China, India, Pakistan, South-Asia, Mexico, Brazil, Chile, Colombia

Spinbox Systems
Syringe Feeding System

PC- controlled, provides accurate control of liquid infusion. Syringe volume: up to 140 mL. Min-max flow rates: 0.1 µL/h - 6000 mL/h. Linear force: 100-200 N.

View details >>

Sales Office: Europe, USA, Canada, Japan, China, India, Pakistan, South-Asia, Mexico, Brazil, Chile, Colombia

Spinbox Systems
Pressure Vessel Feeding System

Pressure vessel feeding system. Solution reservoir for connection to compressed air supply. Solution flow rates are controlled by pressure regulation. Pressure range: 0.1 - 100 kPa.

View details >>

Sales Office: Europe, USA, Canada, Japan, China, India, Pakistan, South-Asia, Mexico, Brazil, Chile, Colombia

Linari Engineering
KFT-NE300

Syringe pump - single syringe, digital controller

View details >>

Sales Office: Italy

Linari Engineering
KFT_4000

Syringe pump - 2 syringes, digital controller

View details >>

Sales Office: Italy

Spraybase®
Syringe Pump Module

The syringe pump modules are software controlled and allow the user to control the flow rate with infusion rate of 0.75 µl/hr to a maximum 2100 ml/hr. Maximum syringe size is 60 cc. These syringe pump modules are designed to be stacked on high voltage modules or with multiple other syringe pump modules for co-axial and tri-axial spinning.

View details >>

Sales Office: Europe (Ireland), United States


Fumehood
Linari Engineering
Electrospinning Station

Electrospinning station hood

View details >>

Sales Office: Italy


Verification Tools

Inovenso
SEMoscope

Benchtop Scanning Electron Microscope, High Quality Imaging, Results in less than 4 minutes, Magnification up to 150000, Variety of detectors: SE, BSE, EDS

View details >>

Sales Office: Turkey, United States

BetaSimplicity
Fiber Verification Tool

Verify that your electrospinning is producing fibers, onsite, in less than a minute. Fiber verification for any electrospun material. Compatible with any flat plate collector setup.

View details >>

Sales Office: Singapore


· For listing opportunity, please contact us at partner@electrospintech.com ·
